6mm Solar Cable

ZIMMER DC PV SOLAR CABLE - 6mm²

6mm thickness sold per meter, each color sold separately - silicone high voltage cable for solar panel installation

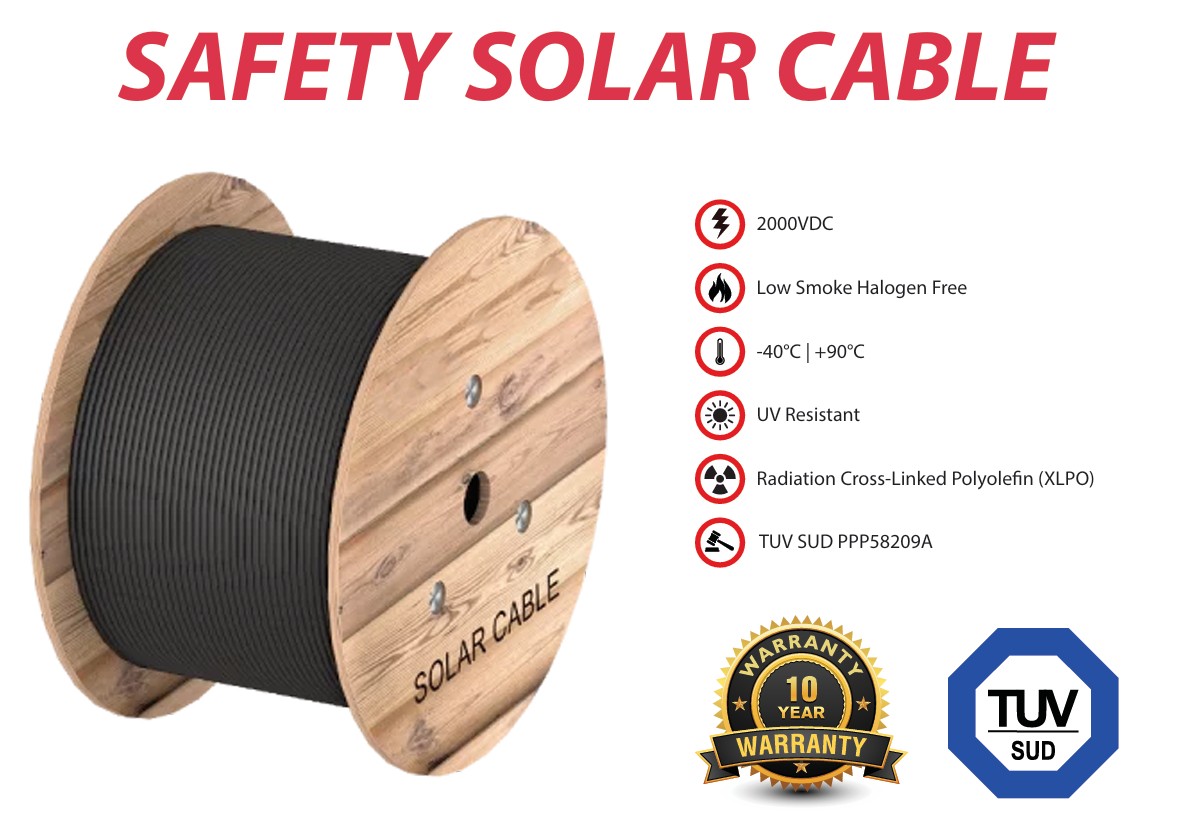

ZIMMER SAFETY SOLAR CABLE TUV SUD PPP58209A PV2000DC (TCA) 1X6mm2
2000V UV. Res HALOGEN FREE LOW SMOKE
Certificate
PPP58209A
B1204960002

Model Nr: PV2K-TCA-60B - Black 6mm²

Model Nr: PV2K-TCA-60R - Red 6mm²

Strand Design: 84 Strands

Strand Thickness: 0.285mm²

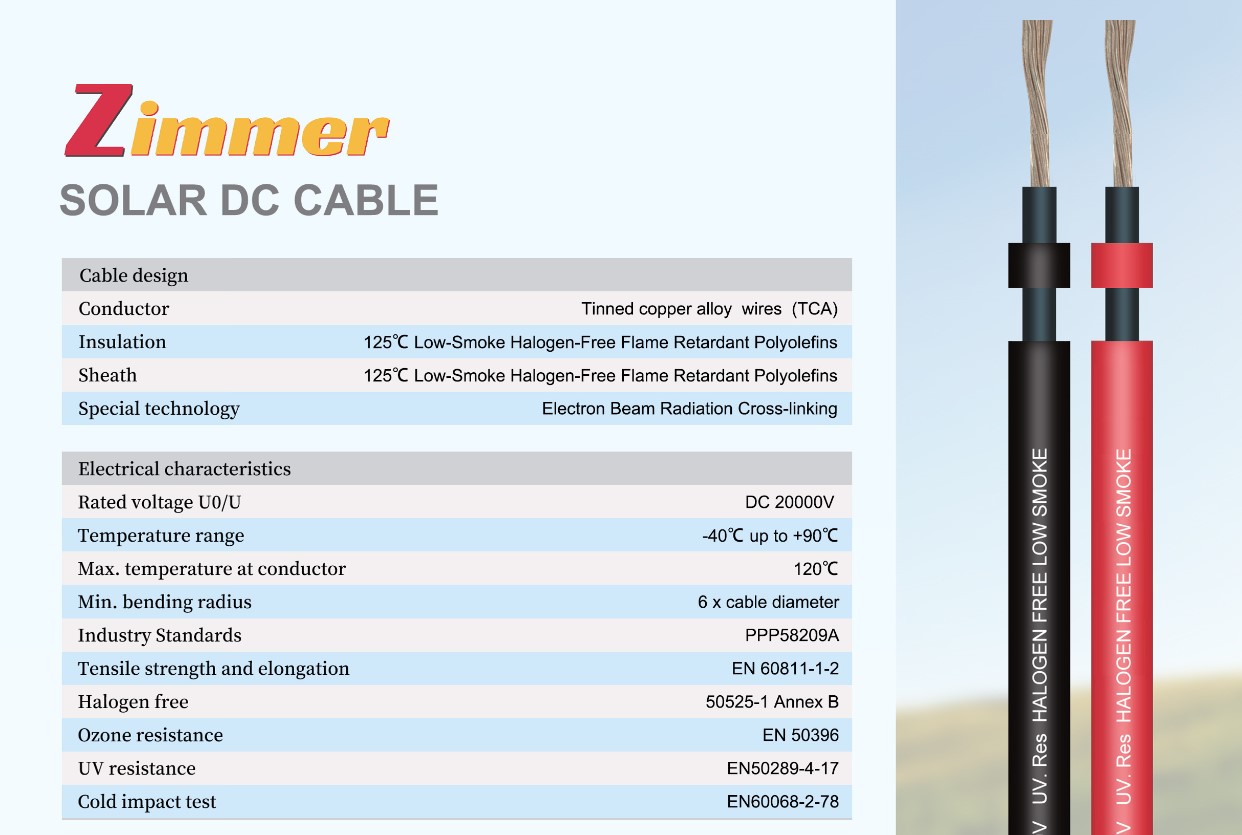

Cable Design:

Conductor: TCA, tined copper alloy wires

Insulation: 125°C Low-Smoke Halogen-Free Flame Retardant Polyolefins

Sheath: 125°C Low-Smoke Halogen-Free Flame Retardant Polyolefins

Special Technology: Electron Beam Radiation Cross-Linking

Electrical Characteristics

Rated Voltage U0/U: DC 2000V

Temperature Range: -40°C up to +90°C

Max Temperature at Conductor: 120°C

Min Bending Radius: 6x Cable Diameter

Industry Standards: PPP58209A

Tensile Strength and Elongation: EN60811-1-2

Halogen Free: 50525-1 Annex B

Ozone Resistance: EN50396

UV Resistance: EN50289-4-17

Cold Impact Test: EN60068-2-78

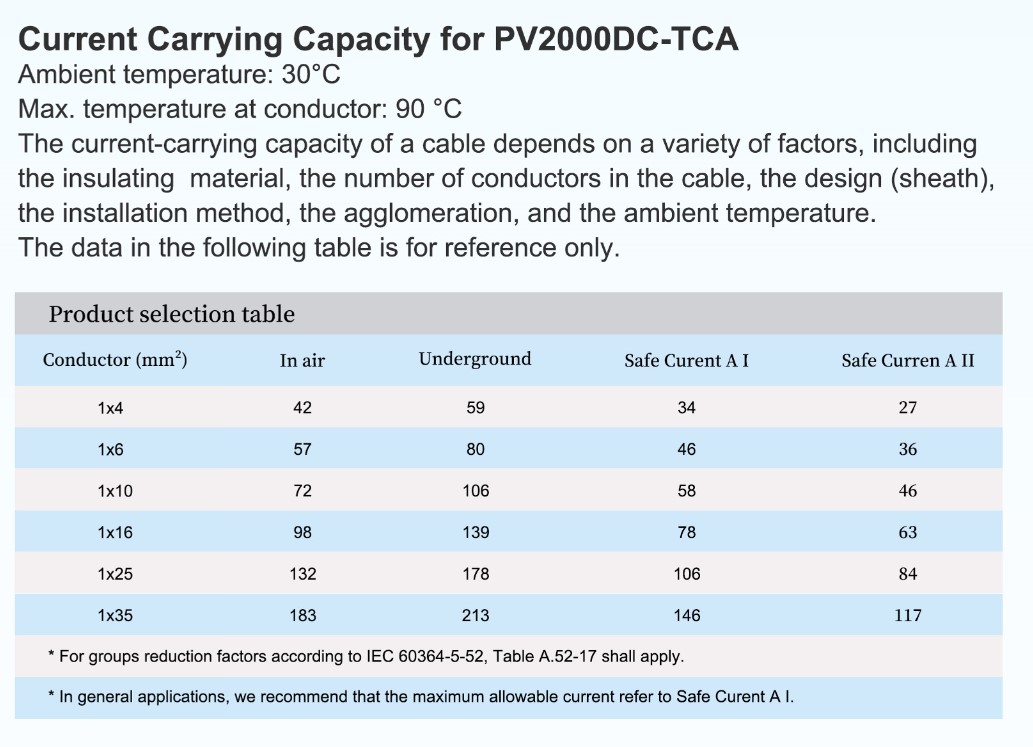

Current Carrying Capacity for PV2000DC-TCA

Ambient temperature: 30°C

Max. temperature at conductor: 90°C

The current-carrying capacity of a cable depends on a variety of factors, including the insulting material, the number of conductors in the cable, the design (sheath), the installation method, the agglomeration, and the ambient temperature.

The following data is for refenece only:

Conductor (mm²): 1x6

In Air: 57A

Underground: 80A

Safe Current A I: 46A

Safe Current A II: 36A

• For groups reduction factors according to IEC60364-5-52, Table A.52-17 shall apply
• In general application, we recommend that the maximum allowable current refer to Safe Current A I
